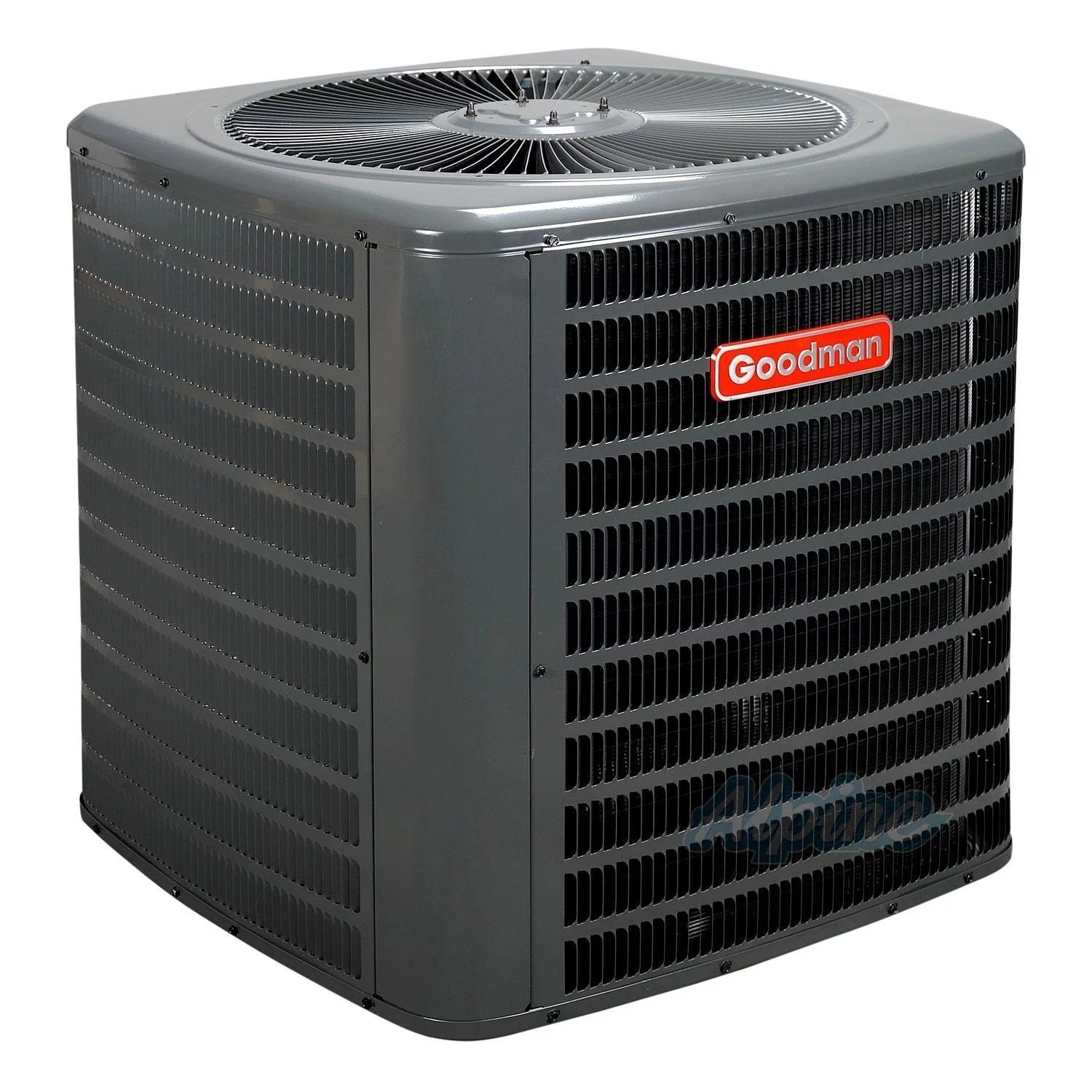

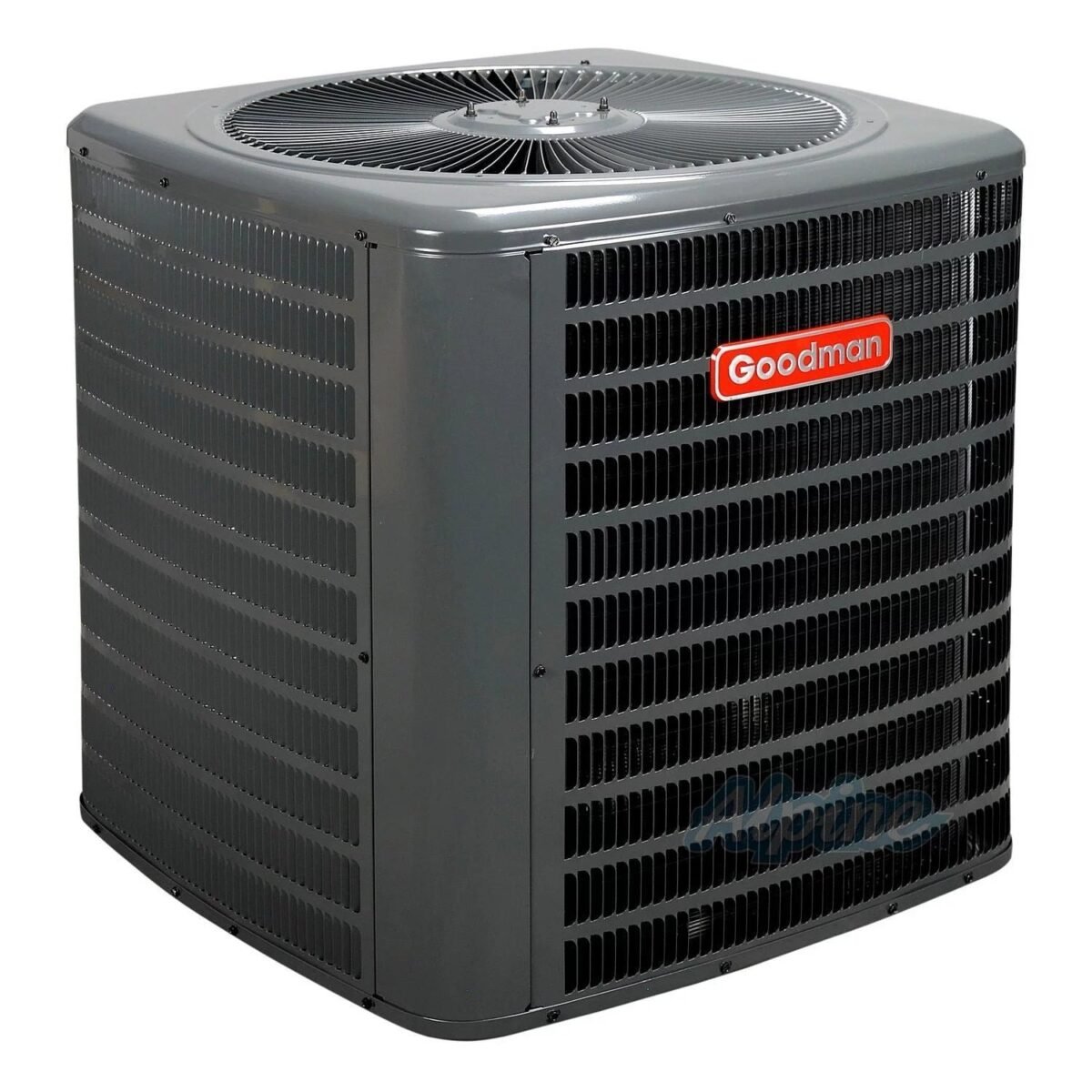

Goodman 2 Ton 14 SEER Air CONDITIONING System – GSX140241 – ARUF29B14

The Goodman GSX14 14 to 15 SEER Central Air Conditioner is designed for the consumer who desires superior comfort, quiet operation, and environmentally friendly cooling performance. It uses R-410A refrigerant which is chlorine-free to help prevent damage to the ozone layer. The GSX14 central air conditioner features a high-efficiency Copeland scroll compressor and features operating sound levels that are among the best in the heating and air conditioning industry.

The GSX140241 can be 14 or 15 SEER, depending on which indoor unit it is paired with. To achieve a 15 SEER system, you must match the condenser with the manufacturer-recommended evaporator coil, a TXV and a Goodman furnace, air handler, or modular blower equipped with a variable speed blower.  For complete matchup information, see the Accessories tab below, consult the Specifications Sheet in the Documents section below, or call 800 865 5931 to speak to a consultant. A 15 SEER central air conditioning  system will reduce your electric bill approximately 7% – 8% more than a 14 SEER system.

Some Goodman central air conditioning condensers include an orifice (also called “flow rater” or “piston”) in a small bag taped to the side of the unit.  If included, use this orifice in place of the one that comes with your coil or air handler to make the two units fully compatible.

Central Air Conditioner’s Standard Features

• Energy-efficient Copeland scroll compressor
• Factory-installed filter drier
• Copper tube/aluminum fin coil

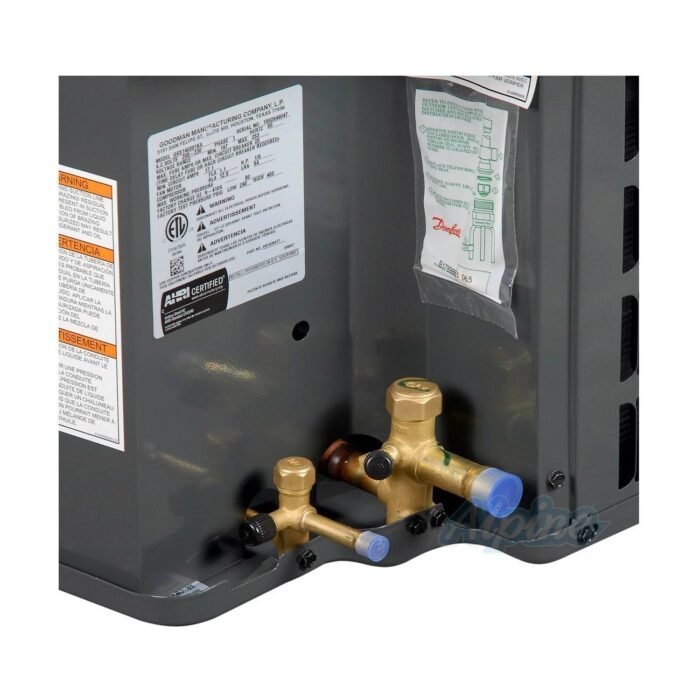

• Service valves with sweat connections and easy-access gauge ports

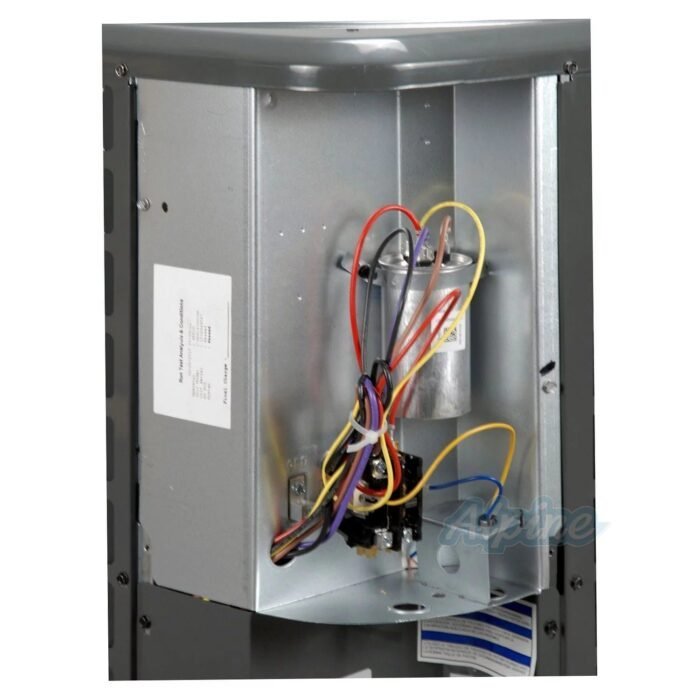

• Contactor with lug connection
• Ground lug connection
• AHRI Certified
• ETL Listed
• Cabinet Features
  • Goodman brand louvered sound control top design
  • Steel louver coil guard
  • Heavy-gauge galvanized-steel cabinet
  • Attractive Architectural Gray powder-paint finish with 500-hour salt-spray approval
  • Top and side maintenance access
  • Single-panel access to controls with space provided for field-installed accessories
  • When properly anchored, meets the 2010 Florida Building Code unit integrity requirements for hurricane-type winds
  • Legal Region

No Southwest

Total Cooling Capacity

2 Ton(s)

Cooling BTUs

24000 BTU

Cooling Tonnage

2 Tons

SEER

14 SEER

Energy Efficiency Ratio

12.0 EER

Refrigerant

R-410A

Maximum Overcurrent Protection (Breaker)

15 Amps

Compressor Type

Scroll

Stages

Single Stage

Low Pressure Safety Switch

No

Liquid Line Size

3/8 Inches

Suction Line Size

3/4 Inches

Noise Level

71 Decibels

Pad Size

30×30 Inches

Product Weight

126 lbs

Shipping Weight

141 lbs

Width

26 Inches

Depth

26 Inches

Height

27.5 Inches

Voltage

208 – 230 Volts

Frequency

60 Hz

Voltage Phase

1

Compressor Warranty

10 Years With Online Registration

Parts Warranty

With Online Registration 10 Years

Model: GOODMAN GSX140241
